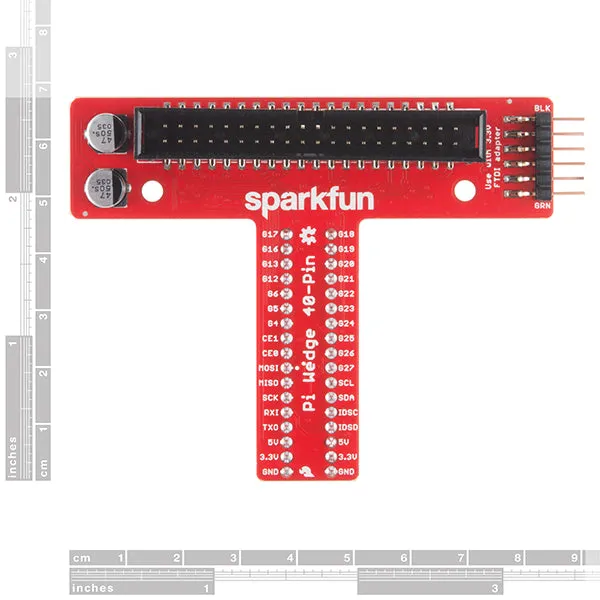

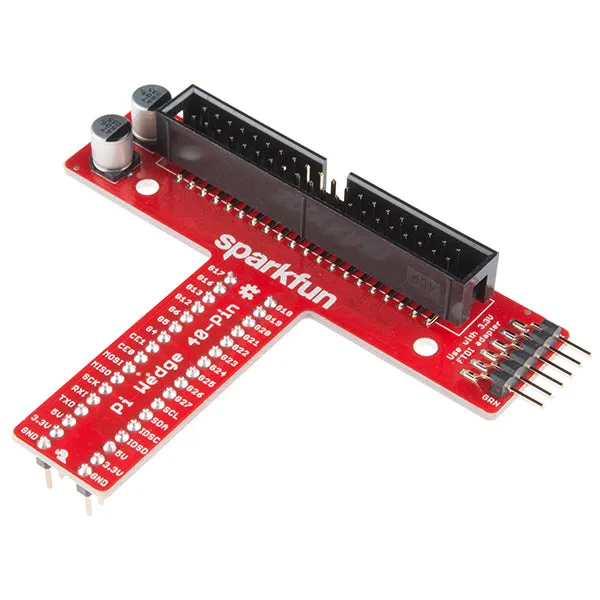

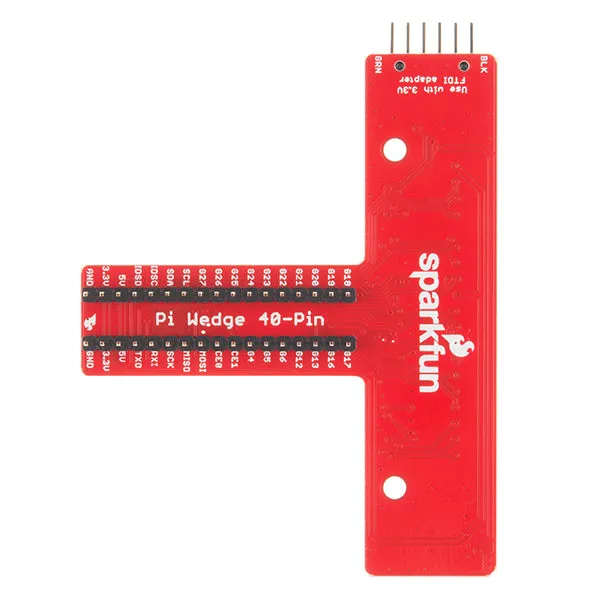

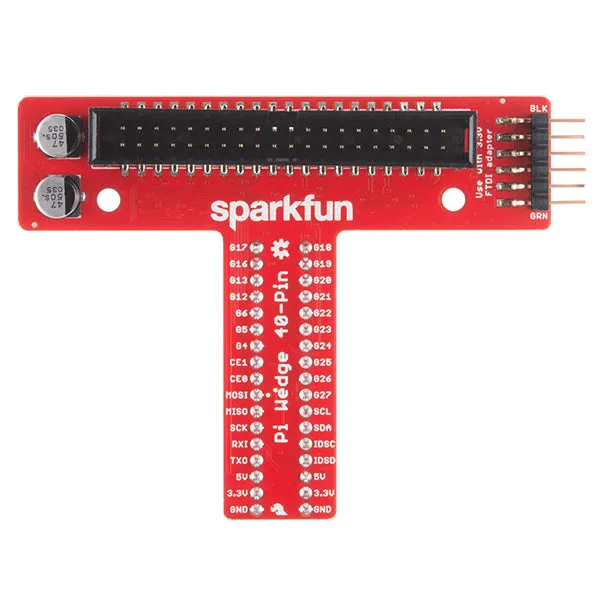

This is the SparkFun Pi Wedge, a small board that connects to the 40-pin GPIO connector on the Raspberry Pi and breaks the pins out to breadboard-friendly arrangement and spacing, and even adds a couple of decoupling capacitors on the power supply lines. The “Wedge” also makes the initial bring-up process easier - you can plug an FTDI Basic module into the built-in serial port. Each version of this Pi Wedge comes preassembled and can be inserted into the RPi's GPIO port that allows you to prototype - no soldering required!

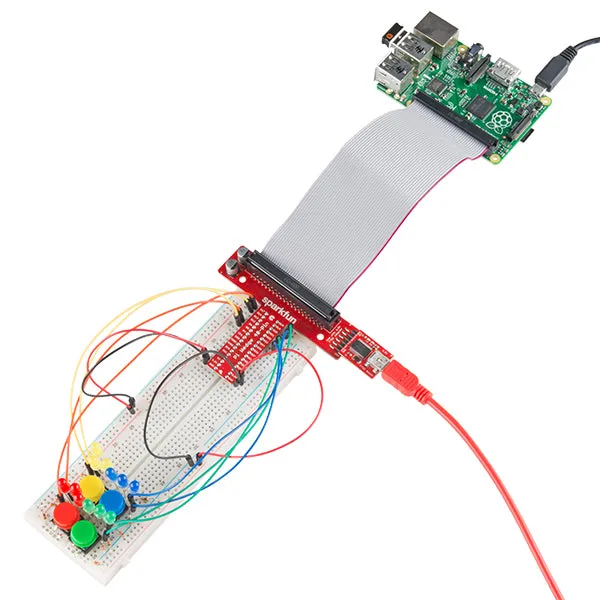

The Pi Wedge is compatible with the Raspberry Pi A , B , or RPi2 models and it adapts the GPIO header on the RPi to a standard solderless breadboard, such as our or breadboards. While it will technically with with a breadboard, it won't leave much room for external circuitry. If you love the Raspberry Pi and have been looking to start prototyping with it look no further than the SparkFun Pi Wedge!
Includes:
- 1x Preassembled SparkFun Pi Wedge

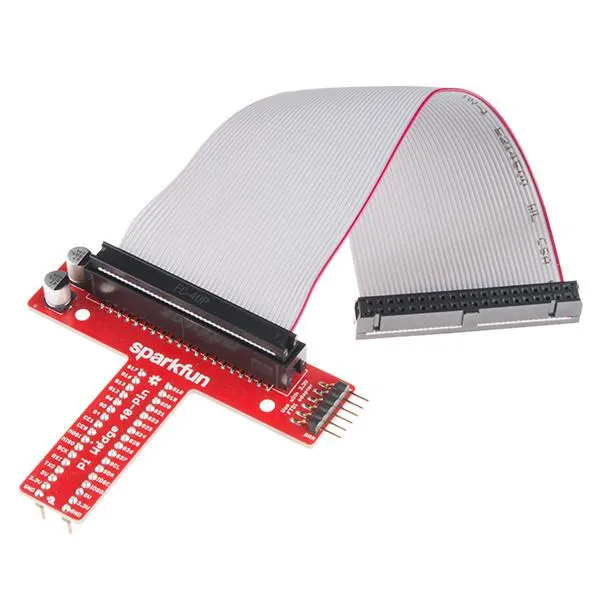

- 1x GPIO Ribbon Cable (40-pin, 6")
Documents:
- (Example Code & Design Files)
